Multi-cylinder cone crusher introduction:
The multi-cylinder cone crusher produced by Phoenix Mining Equipment (Shanghai) Co., Ltd. is mainly used for secondary crushing or tertiary crushing in sand and stone processing. The multi-cylinder cone crusher has certain advantages in crushing materials with high hardness and fine crushing. While its hydraulic lubrication system ensures the reliable operation of the equipment, it makes the operation control more intelligent and humanized. On the basis of the traditional multi-cylinder hydraulic cone crusher main shaft fixed, eccentric sleeve rotating structure and lamination crushing principle, the structure of the equipment has been optimized through breakthroughs to improve the performance and crushing capacity of the equipment. It is widely used in the crushing of medium and hard materials such as river pebbles, granite and basalt.
The principle of multi-cylinder cone crusher:
The multi-cylinder hydraulic cone crusher drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft swing periodically under the axis line when the motor rotates. After the material enters the crushing cavity from the material port, it is crushed due to the mutual impact of the eccentric shaft and the rolling mortar wall, which is crushed and rubbed. The hydraulic insurance system can remove the support sleeve and the fixed cone part by hydraulic pressure when the machine has an iron fault or a boring car phenomenon. It plays a good insurance role and greatly reduces the maintenance rate and improves production efficiency.
Features of multi-cylinder cone crusher:
1. FKG series multi-cylinder cone crusher has the obvious advantage of high crushing ratio when the material hardness is large and the particle size of the finished product is small;
2. The combined design of the crushing stroke, crushing speed and crushing cavity shape of the equipment makes the multi-cylinder hydraulic cone crusher have a larger processing capacity than the traditional cone crusher, and the output is increased by 35%-60%.
3. The equipment has good shape for lamination and crushing, and the material is crushed by the principle of lamination and crushing. By optimizing the equipment and cavity shape, the lamination crushing efficiency is improved, the crushing efficiency is high, the wear of wearing parts is low, and the finished particles The shape is cube with high content of fine particles. Improve the quality of finished products and reduce the production cost of equipment and the entire system.
4. Full hydraulic control is accurate and reliable. The equipment uses hydraulic operation from cavity cleaning, overload protection to adjustment and locking. FKG series multi-cylinder cone crusher is stable and reliable, and easy to operate. The hydraulic system structure is fully optimized and upgraded, the adjustment and control are more accurate, and the automatic protection response is more sensitive.
5. Structural upgrade More efficient. Based on the structure of fixed main shaft and eccentric sleeve rotating around the main shaft, the equipment has further optimized the design of transmission components and lubrication sealing structure. FKG multi-cylinder hydraulic cone crusher equipment has strong bearing capacity, and the installed power is large in the industry of the same type, with small size, high efficiency and low noise.
Multi-cylinder cone crusher parameters:
型號
Model |
最大給料尺寸(mm)
MaxFeeding Size |
推薦排料口范圍(mm)
Discharge Range |
電機功率(kw)
Motor Power |
生產(chǎn)能力(噸/小時)——開路，閉邊排料口(mm) |
|
Capacity（Tons/h）——Open Circuit，Closed Discharge（mm） |
|
9 |
13 |
16 |
19 |
22 |
26 |
31 |
38 |
51 |
|
FKG-150C |
165 |
22-31 |
90 |
30-41 |
50-66 |
75-86 |
90-102 |
100-123 |
110-132 |
130-158 |
|
|
|
FKG-150M |
135 |
13-26 |
|
FKG-150F |
55 |
9-19 |
|
FKG-200C |
180 |
22-31 |
160 |
55-62 |
70-93 |
100-140 |
130-170 |
165-195 |
175-220 |
195-230 |
|
|
|
FKG-200M |
140 |
13-31 |
|
FKG-200F |
60 |
9-22 |
|
FKG-280C |
250 |
26-51 |
200 |
58-72 |
75-98 |
130-150 |
170-210 |
190-220 |
230-260 |
270-298 |
299-322 |
325-350 |
|
FKG-280M |
160 |
16-38 |
|
FKG-280F |
80 |
9-22 |
|
FKG-400C |
300 |
31-63 |
315 |
120-145 |
140-180 |
200-240 |
230-300 |
270-340 |
295-368 |
310-410 |
350-450 |
460-550 |
|
FKG-400M |
170 |
22-51 |
|
FKG-400F |
80 |
13-26 |
|
FKG-600C |
350 |
31-51 |
450-550 |
|
300-420 |
350-530 |
390-510 |
430-590 |
460-620 |
490-680 |
570-760 |
650-860 |
|
FKG-600M |
230 |
22-51 |
|
FKG-600F |
80 |
13-26 |
Note: Parameters are subject to update without notice, please contact us.

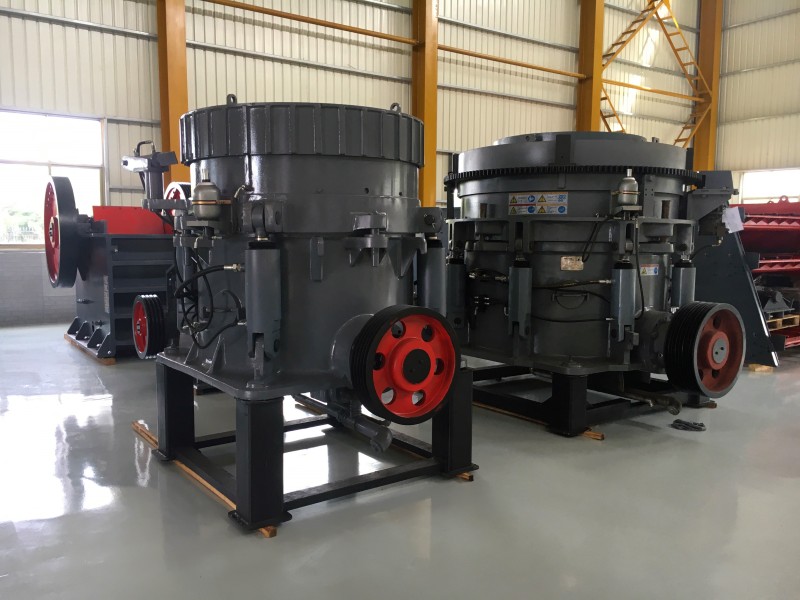

Picture of multi-cylinder cone crusher:
